Aluminum Honeycomb Panel

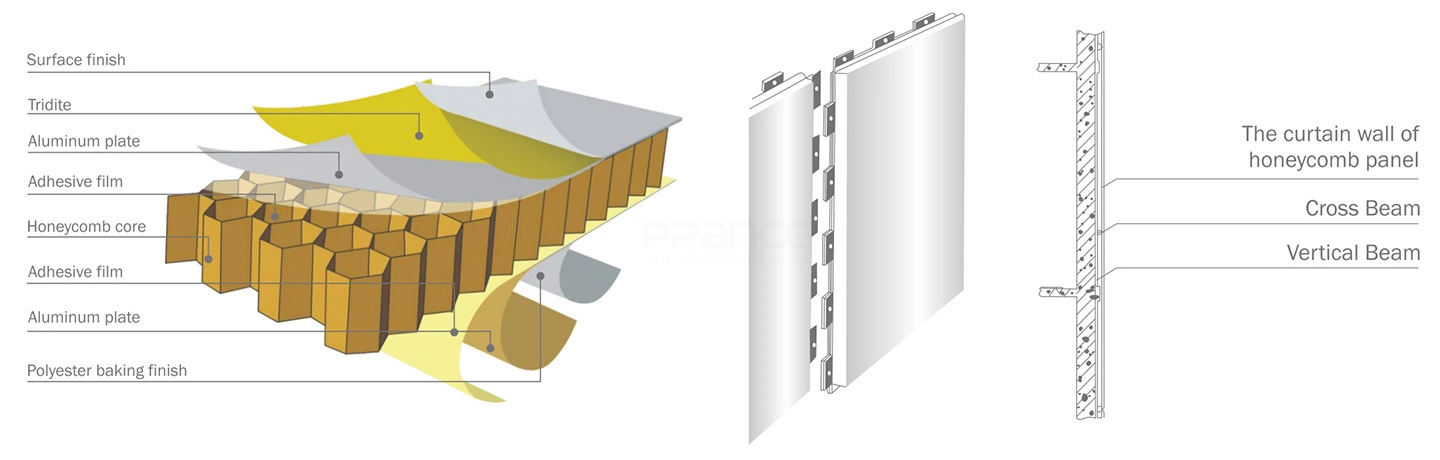

The aluminum honeycomb version uses high-strength 3003 aluminum alloy as the panel, and high-density aluminum honeycomb core as the core material. It combines the aesthetic appeal of metal exteriors with the advantages of being lightweight, thermally and acoustically insulating, fire-resistant, and more.

This Honeycomb metal panel material not only meets aesthetic requirements but also offers exceptional functional properties, making it suitable for various architectural and decorative applications, thus becoming a preferred choice in modern architectural design. As a professional aluminum Honeycomb panel manufacturer in China, Jayminton offers the best custom aluminum Honeycomb panels for wordlwide customers. Welcome to inquire about wholesale aluminum Honeycomb panel price, we are the best choice of aluminum Honeycomb panel supplier.

Introduction

1. Key Features & Performance

● The metal Honeycomb panel product is customizable (in terms of shape and size).

● Easy Installation And Maintenance

● Can be painted to achieve any desired color.

● For Indoor use

● Economical, lightweight, durable.

2. Industry Applications

Airport, Transport Station, Shopping Mall, Conference, Exhibition Center, Hotel, Stadium, Conference & Exhibition Center, Hospital, School, Office，Home

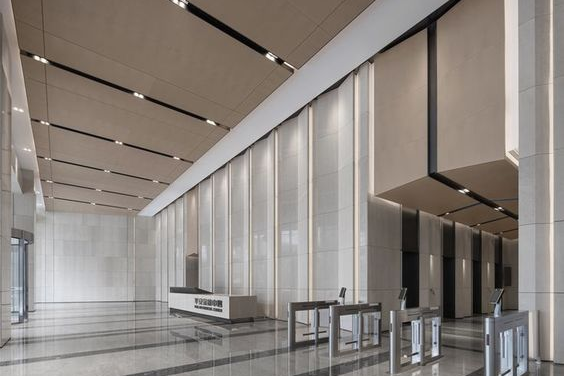

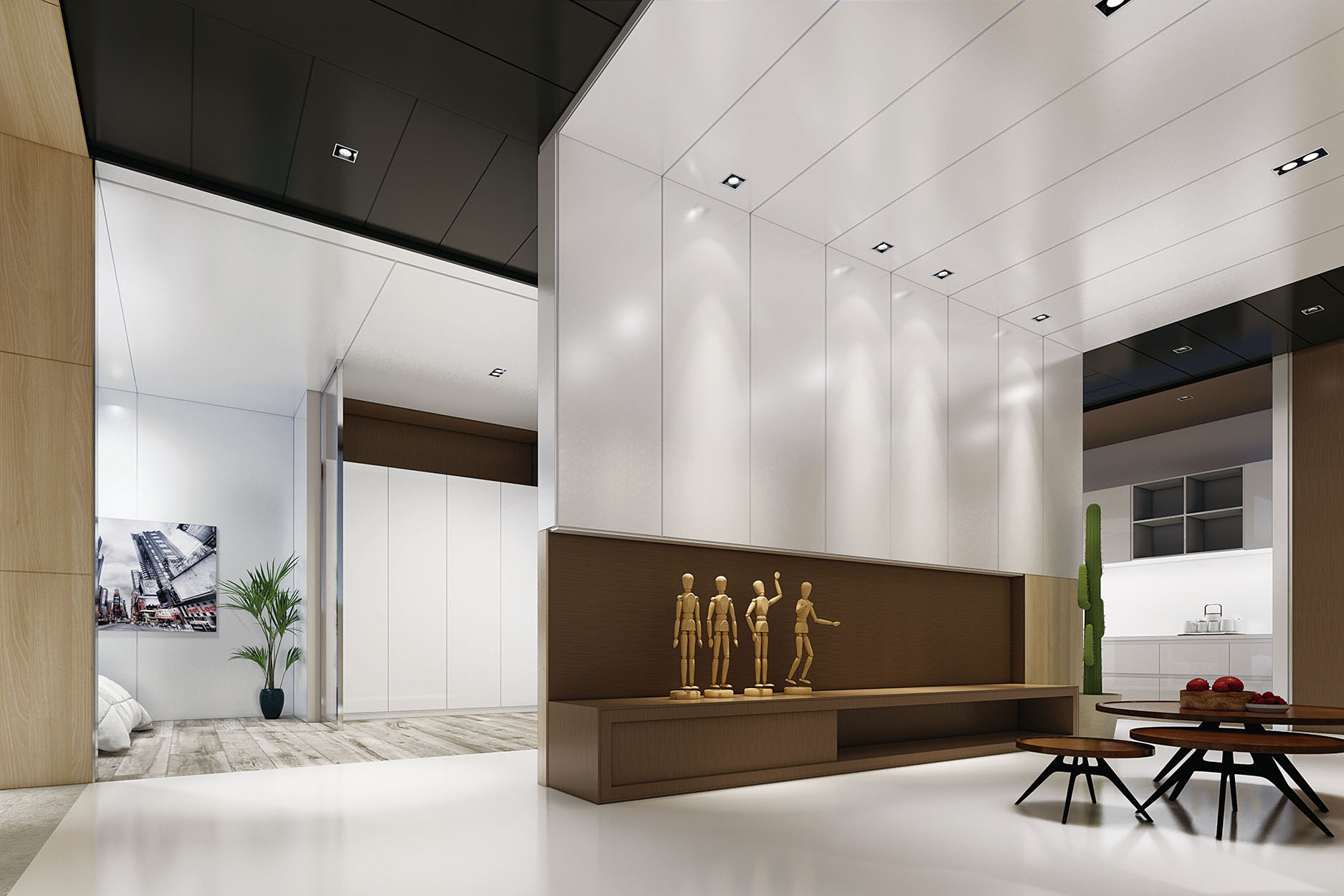

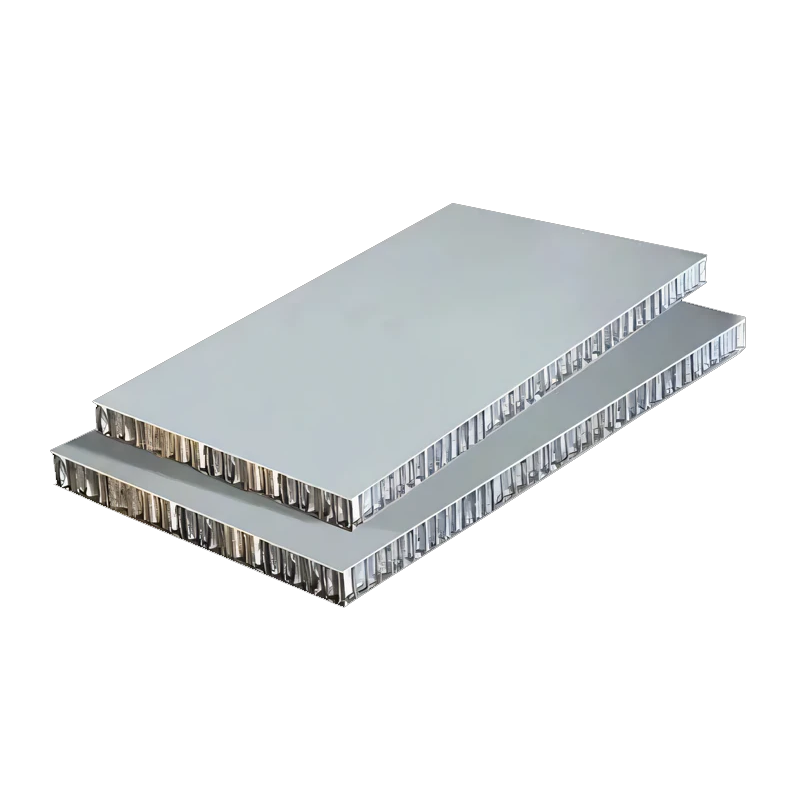

Aluminum Honeycomb Panel.png Aluminum Honeycomb Panel.jpg

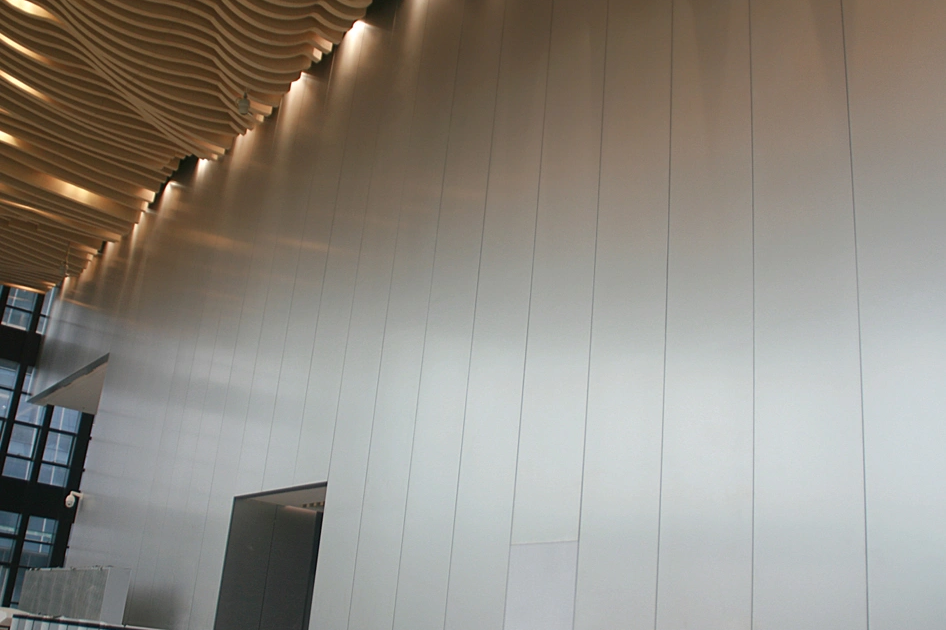

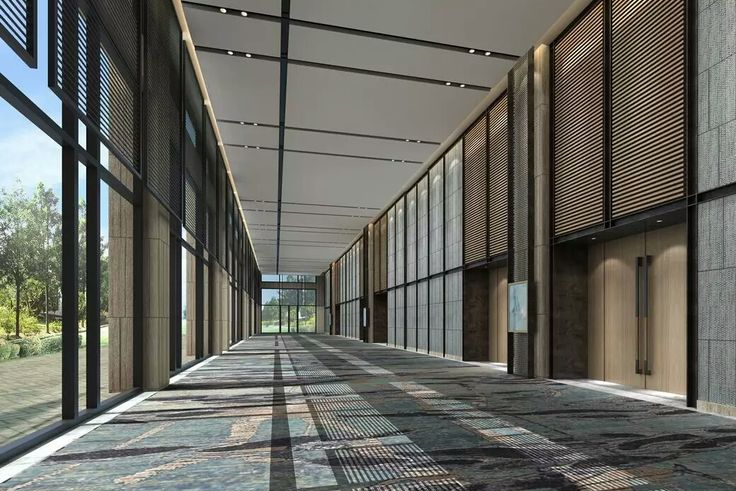

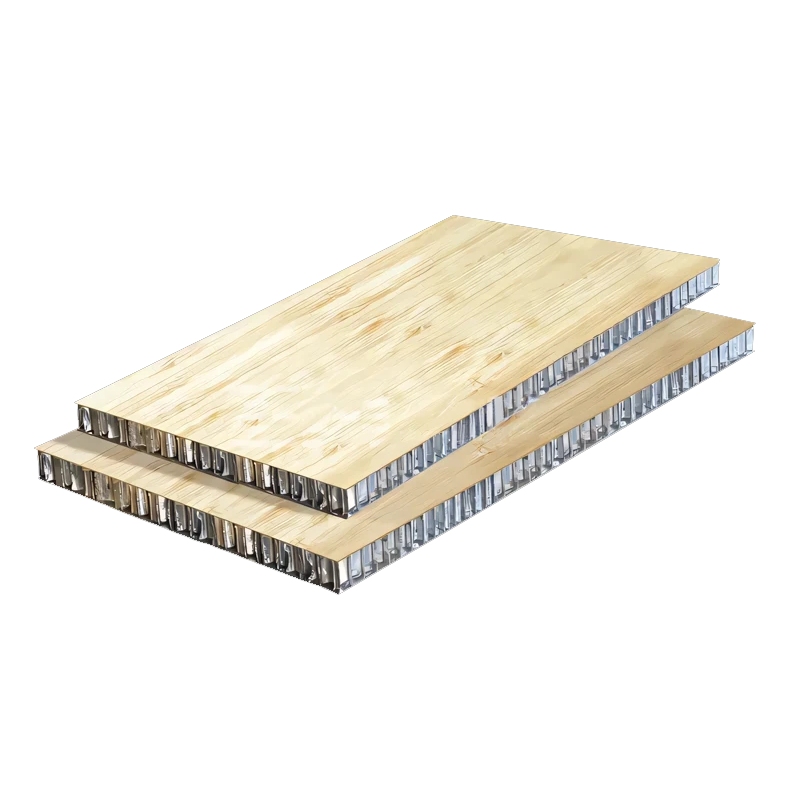

Aluminum Honeycomb Panel (3).png Aluminum Honeycomb Panel (2).png

3. Parameter Features

Honeycomb Panel Dimensions

Material	1. Aluminum 2. Stainless Steel
Panel Size	12002400, 14003000, 1200240, 14003000, 1800*6000mm or customized,
Total Thickness	7-30 mm, regular: 12 mm (1+11+1)
Front Panel	0.8-3.0 mm
Back Panel	0.5-1.0 mm
Core Thickness	6-20 mm
Surface Aluminum Alloy	1100, 3003, 3014, 5005, 5015, 6063, etc.
Surface Finish	Powder coating, painting, anodizing, and more in surface finish series.
