Kingswood TAFE, Sydney [AU]

The Kingswood Institute of Applied Technology in Penrith, Sydney provides first-class training rooms for the construction industry.   Metal ceiling systems were chosen for this new-build project.   These satisfy the functional requirements while also providing a visually compelling design.

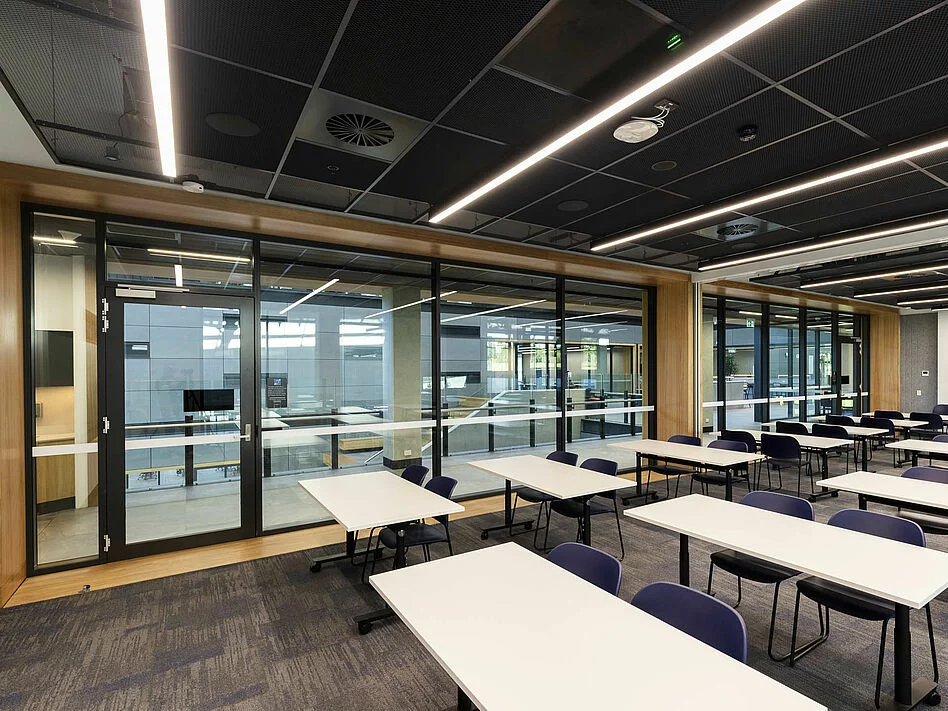

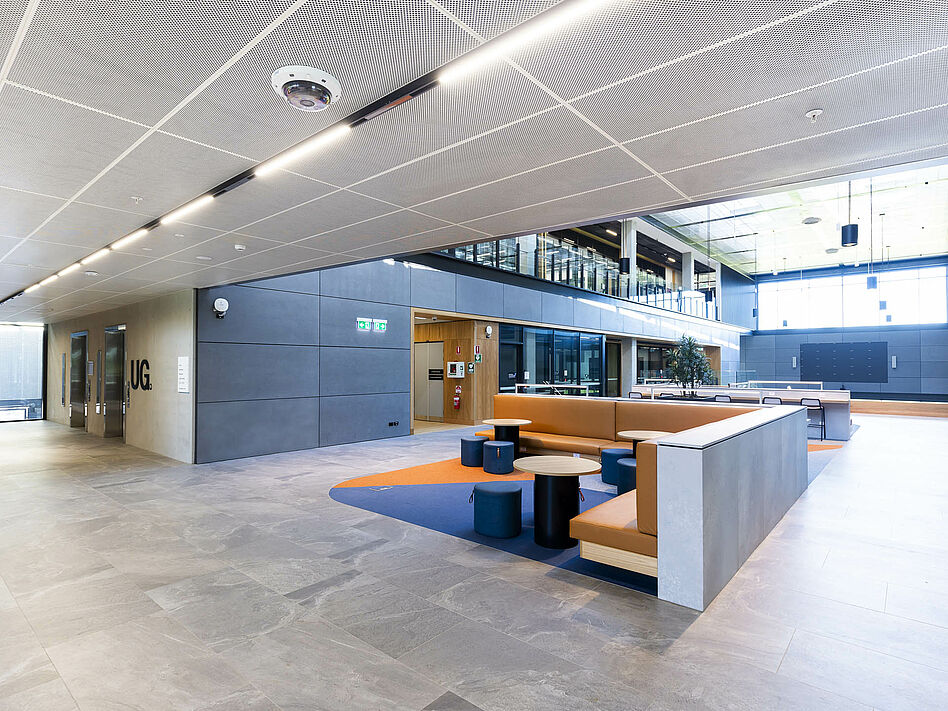

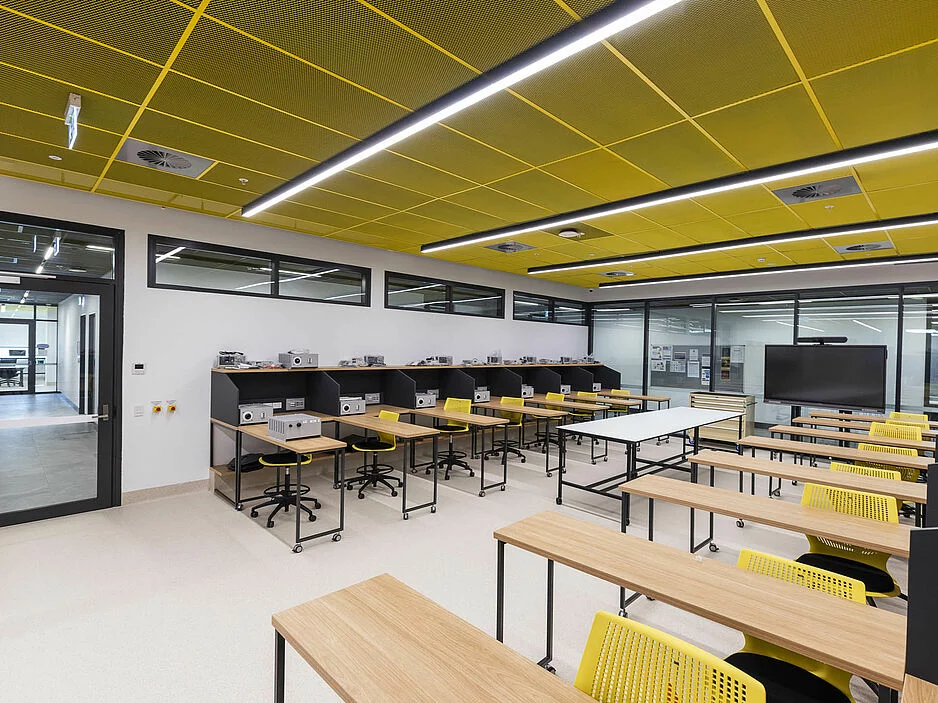

Various different expanded metal ceilings are being used in this building: black, blue and grey ceiling panels promote a good atmosphere for concentrated work in the classrooms and meeting rooms while light-grey shades in the public areas convey open-ness and a sense of spaciousness.   The training rooms were equipped with lively yellow powder-coated expanded metal panels.   The inconspicuous S1 slip-in system used in the corridors creates a visual sense of precision and of straight lines.

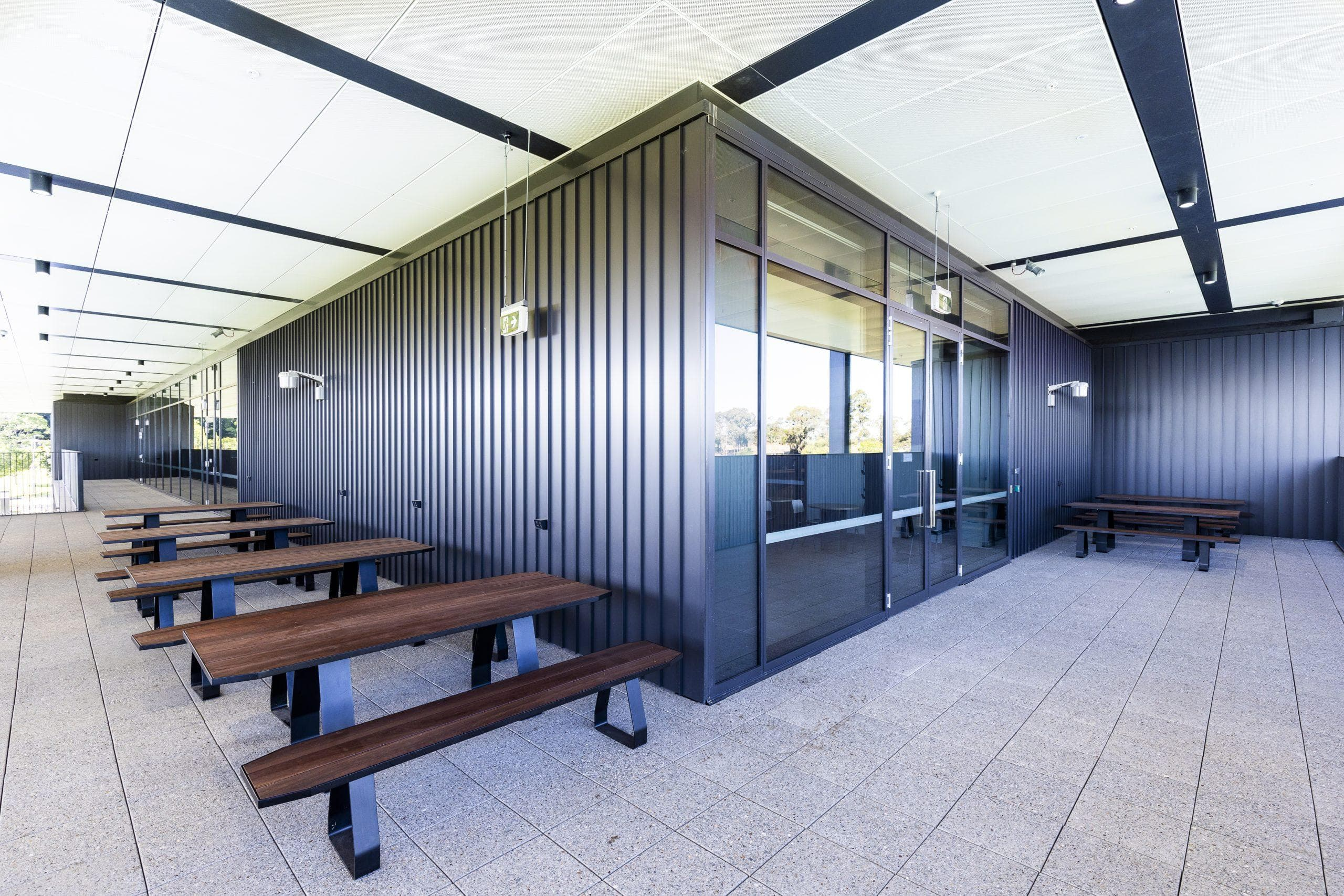

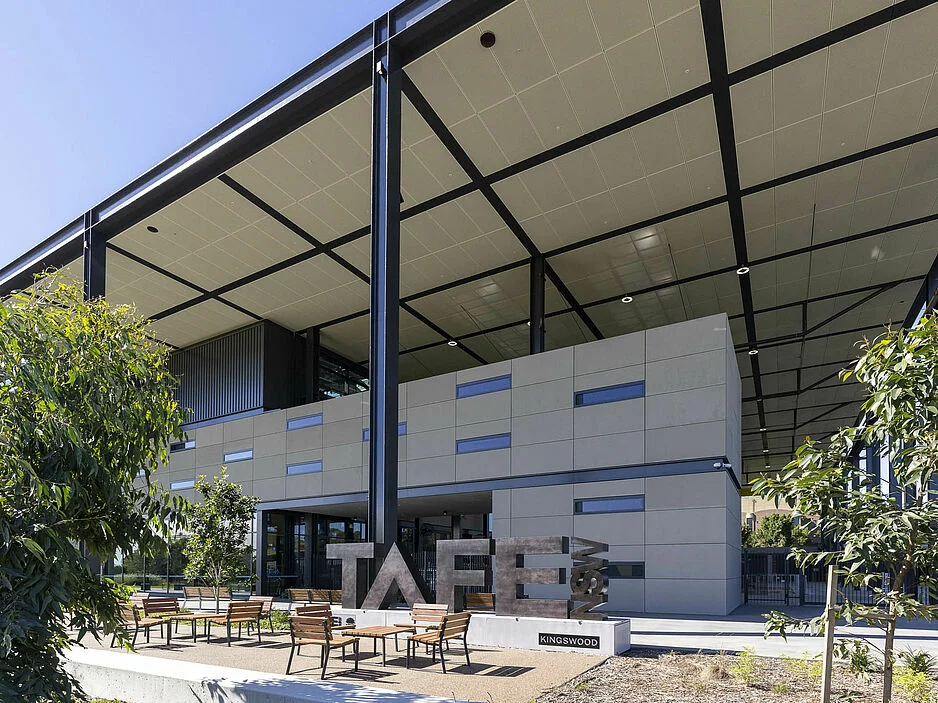

Outside the building, a special version the wind-proofed S7 EXTERIOR rail channel system blends seamlessly into the industrial design of the building while also complementing its modern architecture.

Project: Kingswood TAFE, Sydney [AU]

Products

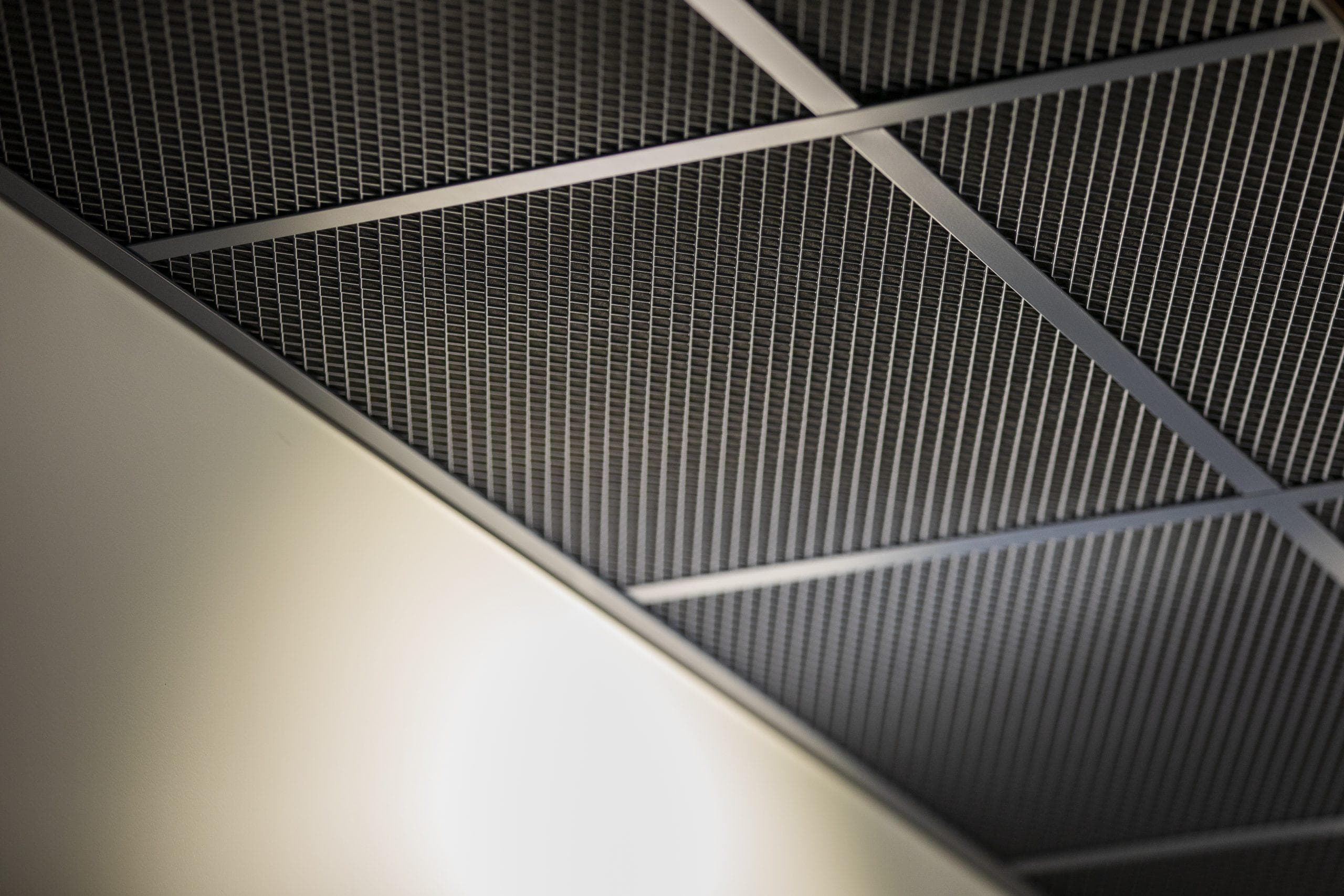

S3 insertion system with expanded metal panels: in the classrooms, meeting rooms and public areas
Material: 1.5 mm aluminium; mesh: M110; dimensions: 1200 mm x 600 mm; colour: black, blue, yellow, dark grey and light grey [1800 m²]

S1 clip-in system: in the corridors
Material: 0.7 mm aluminium; special perforation; dimensions: 1200 mm x 600 mm; colour: white RAL 9003 [750 m²]

Special version of the S7 EXTERIOR rail channel system: outside
Material: 2.0 mm aluminium with 3.0 mm; special perforation; dimensions: various dimensions between 320 mm x 1000 mm and 2400 mm x 1200 mm; colour: pearl white and matt black [3000 m²]
